Evaporative Hose Installation Note
Install the evaporative hose as shown in the figure.

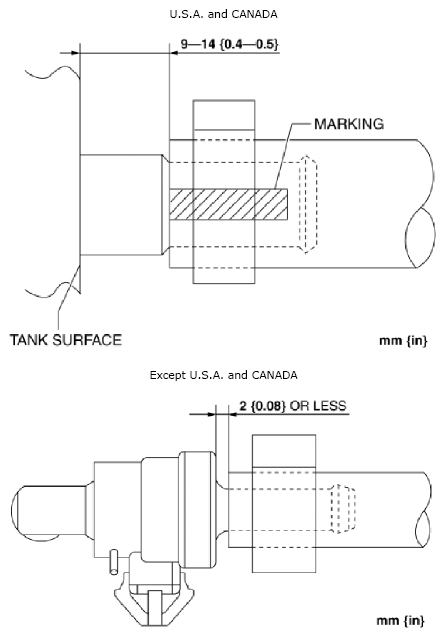

Fig 1: Identifying Evaporative Hose Dimension
Courtesy of MAZDA MOTORS CORP.
