Breather Hose Installation Note

  1. Install the breather hose as shown in the figure.

    Fuel tank side

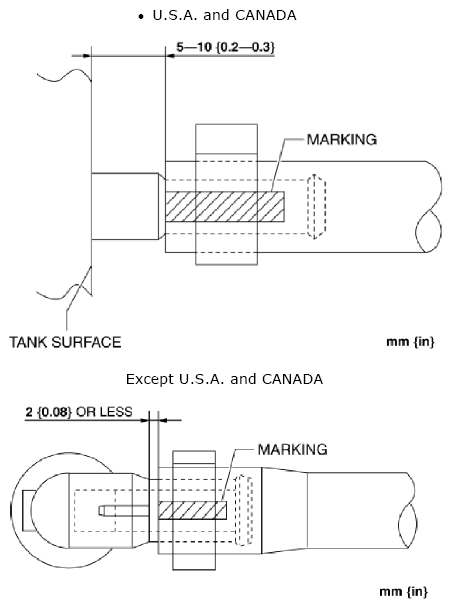

    Fig 1: Identifying Breather Hose Dimension (Fuel Tank Side)
    G10960012Courtesy of MAZDA MOTORS CORP.

    Fuel-filler pipe side

    Fig 2: Identifying Breather Hose Dimension (Fuel-Filler Pipe Side)
    G10960014Courtesy of MAZDA MOTORS CORP.
