KS Installation Note (SKYACTIV-G 2.0)
KS Installation Note (SKYACTIV-G 2.0)
Verify that there is no foreign matter caught between the KS unit and cylinder block.

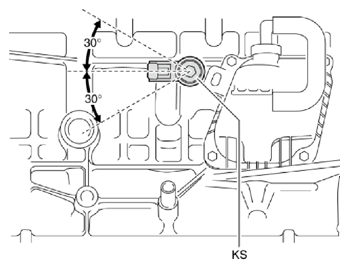

The direction of the KS connector is within the angle range shown in the article.
Fig 1: Identifying KS Connector Directional Angle Range (SKYACTIV-G 2.0)
Courtesy of MAZDA
