Resistance inspection
NOTE:
- Because the IAT sensor No. 2 is integrated in the MAP sensor, replacing the IAT sensor No. 2 includes replacement of the MAP sensor/IAT sensor No. 2.
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Disconnect the MAP sensor/IAT sensor No. 2 connector.
- Remove the MAP sensor/IAT sensor No. 2. (Refer to MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
- Measure the resistance between MAP sensor/IAT sensor No. 2 terminals A and B.
- If not as specified, replace the MAP sensor/IAT sensor No. 2. (Refer to MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)

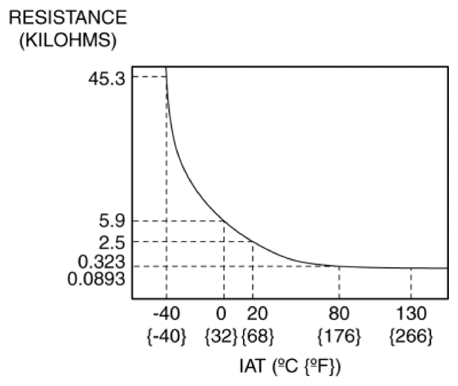

RESISTANCE SPECIFICATION (REFERENCE)IAT (°C {°F}) Resistance (Kilohms) 0 Approx. 5.9 20 Approx. 2.5 80 Approx. 0.323 130 Approx. 0.0893
