Ventilation Hose Installation Note

  1. Install the ventilation hose as shown in the figure.

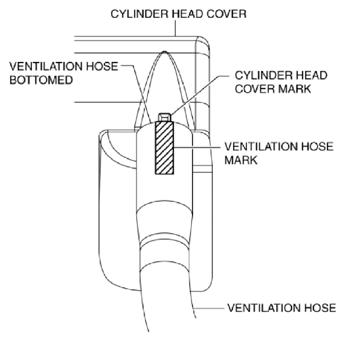

    Fig 1: Installing Ventilation Hose (1 Of 2)
    G10959978Courtesy of MAZDA MOTORS CORP.

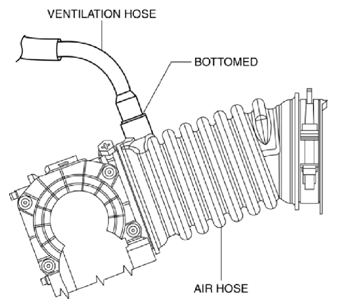

    Fig 2: Installing Ventilation Hose (2 Of 2)
    G10959979Courtesy of MAZDA MOTORS CORP.
