Air Hose Installation Note

  1. Install the air hose as shown in the figure.

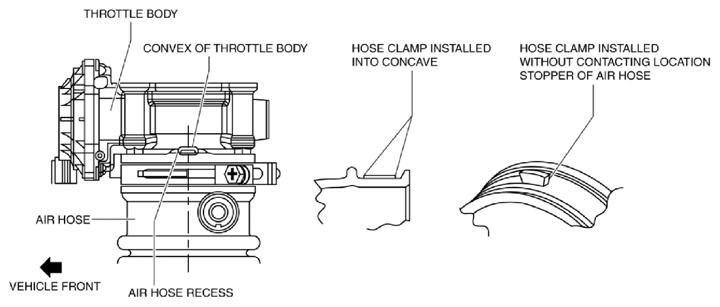

    Fig 1: Installing Air Hose (1 Of 2)
    G10959976Courtesy of MAZDA MOTORS CORP.

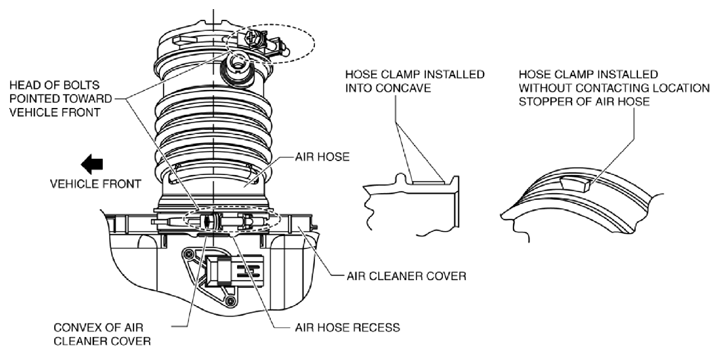

    Fig 2: Installing Air Hose (2 Of 2)
    G10959977Courtesy of MAZDA MOTORS CORP.
