Engine Front Cover Removal Note

  1. Remove the nut shown in the figure and set the cooler hose (LO) aside.

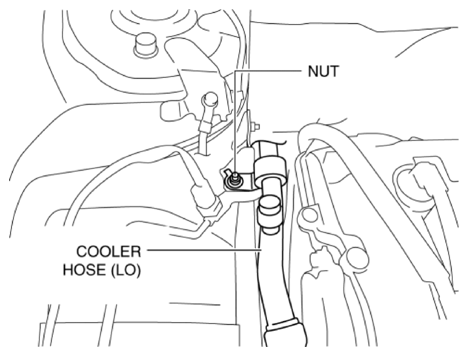

    Fig 1: Identifying Cooler Hose (LO) Nut
    G10959673Courtesy of MAZDA MOTORS CORP.
  2. Remove the insulator shown in the figure.

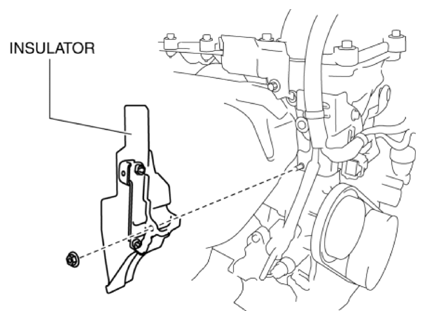

    Fig 2: Removing Insulator
    G10959674Courtesy of MAZDA MOTORS CORP.
  3. Set the ground cable and wiring harness bracket shown in the figure aside.

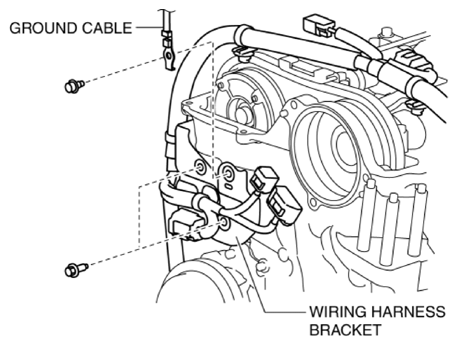

    Fig 3: Setting Ground Cable And Wiring Harness Bracket
    G10959675Courtesy of MAZDA MOTORS CORP.
  4. Remove the engine front cover installation bolts.
  5. Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.
    CAUTION:
    • Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
    • Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

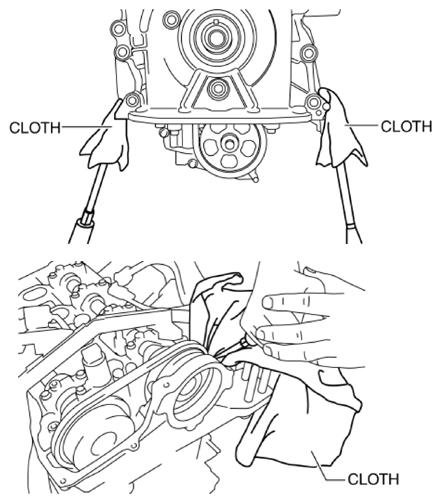

    Fig 4: Removing Engine Front Cover Using Screwdriver
    G10959676Courtesy of MAZDA MOTORS CORP.
