No. 3 Engine Mount: Notes

CAUTION:
  • Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.
  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

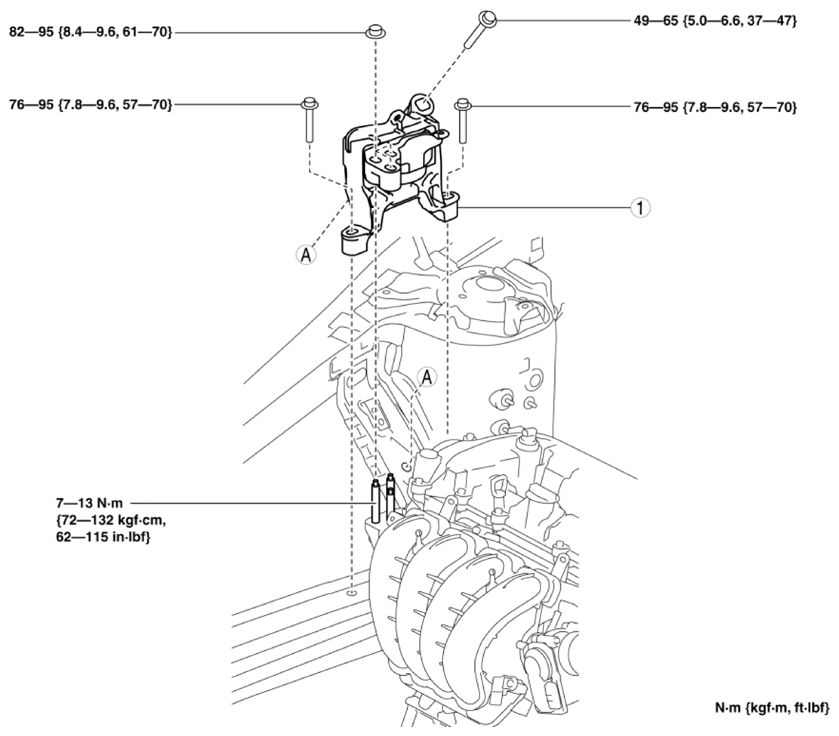

    Fig 1: Identifying Engine Mount Components With Torque Specifications
    G10959800Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 No. 3 engine mount
    (See NO. 3 ENGINE MOUNT REMOVAL NOTE .)
    (See NO. 3 ENGINE MOUNT INSTALLATION NOTE .)
