No. 1 Engine Mount: Notes

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

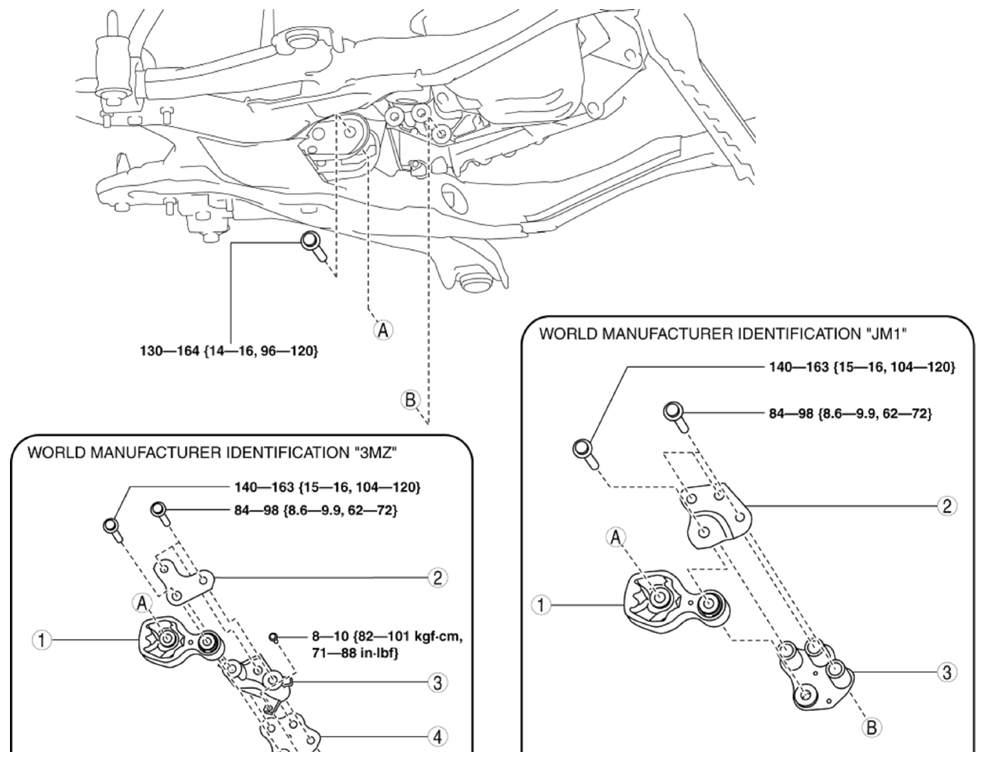

Fig 1: Identifying Engine Mount Components With Torque Specifications

G10959790

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No.1 engine mount rubber (See NO. 1 ENGINE MOUNT RUBBER REMOVAL NOTE .) (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "JM1" .) (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "3MZ") .)
2	Bracket plate [World manufacturer identification "JM1"] (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "JM1" .) Bracket plate (No. 1) [World manufacturer identification "3MZ"] [See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "3MZ") .)
3	No. 1 engine mount bracket (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "JM1" .) (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "3MZ") .)
4	Bracket plate (No.2) [See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "3MZ") .)
