Electric Variable Valve Timing Motor/Driver Removal/Installation: Notes
WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
CAUTION:
- Applying excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the electric variable valve timing motor/driver may cause a malfunction. When servicing, be careful not to apply excessive force to the electric variable valve timing motor/driver using other parts or tools.
- Do not disassemble the electric variable valve timing motor/driver because it is a precision unit.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.

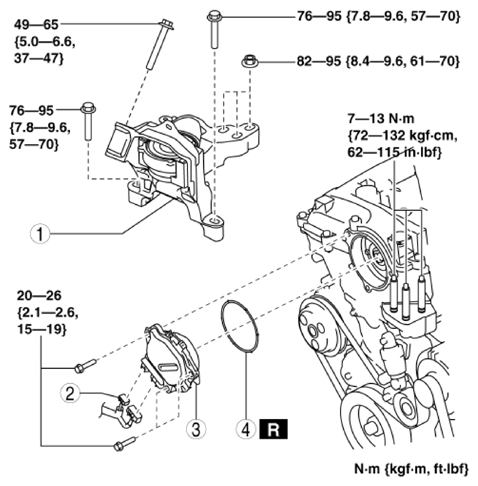

COMPONENT DESCRIPTION1 No. 3 engine mount
(See NO. 3 ENGINE MOUNT REMOVAL NOTE .)
(See NO. 3 ENGINE MOUNT INSTALLATION NOTE. )2 Electric variable valve timing motor/driver connector 3 Electric variable valve timing motor/driver
(See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSTALLATION NOTE. )4 O-ring
