Catch Tank Inspection

Remove the catch tank. (refer to PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
Plug the purge solenoid valve side into the catch tank.

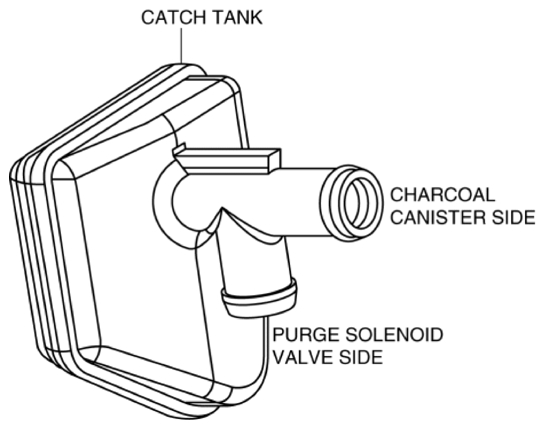

Fig 1: Identifying Catch Tank Components (SKYACTIV-G 2.0)
Courtesy of MAZDA MOTORS CORP.

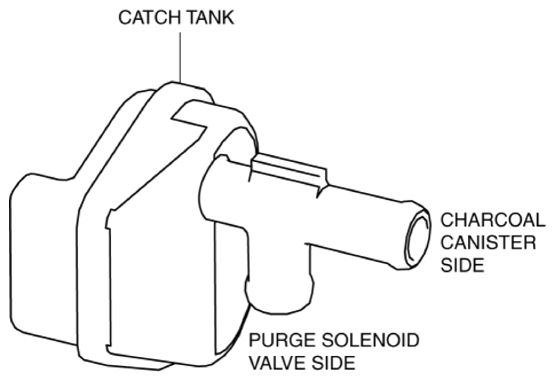

Fig 2: Identifying Catch Tank Components (SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Inspect for air leakage when blowing air using your mouth into the charcoal canister side.
- If there is air leakage, replace the catch tank. (refer to PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
