Active Driving Display Initialization Setting Procedure

NOTE:
  • If foreign matter gets lodged in the combiner while it is opening/closing, the open/close angle may deviate.
  1. Verify that there is no foreign matter around the open/close area of the combiner. Remove all foreign matter along the track in which the combiner closes.
  2. Switch the ignition OFF. (engine off)
  3. Disconnect the negative battery cable or remove the ROOM 15 A  fuse.

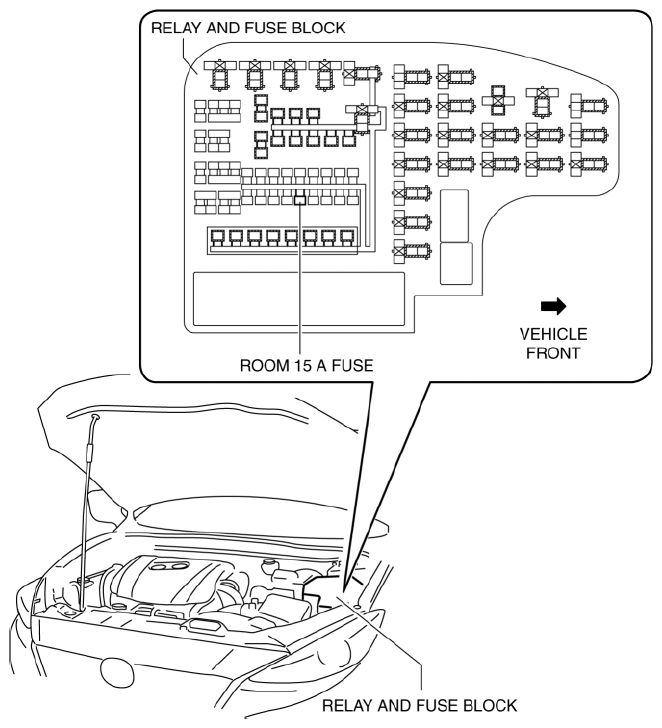

    Fig 1: Identifying Relay And Fuse Block
    G10963870Courtesy of MAZDA MOTORS CORP.
  4. Connect the negative battery cable or install the ROOM 15 A  fuse.
    NOTE:
    • The active driving display performs 0-point correction of the combiner automatically the instant the ignition is switched ON. (Combiner stops at standard position after opening once 10 degrees and completely closing)
  5. Switch the ignition ON (engine on).
  6. Verify that the angle deviation is corrected.
    NOTE:
    • If the angle deviation is not corrected, repeat the procedure from Step  1.
