DC-DC Converter Removal/Installation: Notes
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Disconnect the service plug. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP] .)
- Remove the front seat component (LH). (See FRONT SEAT REMOVAL/INSTALLATION .)

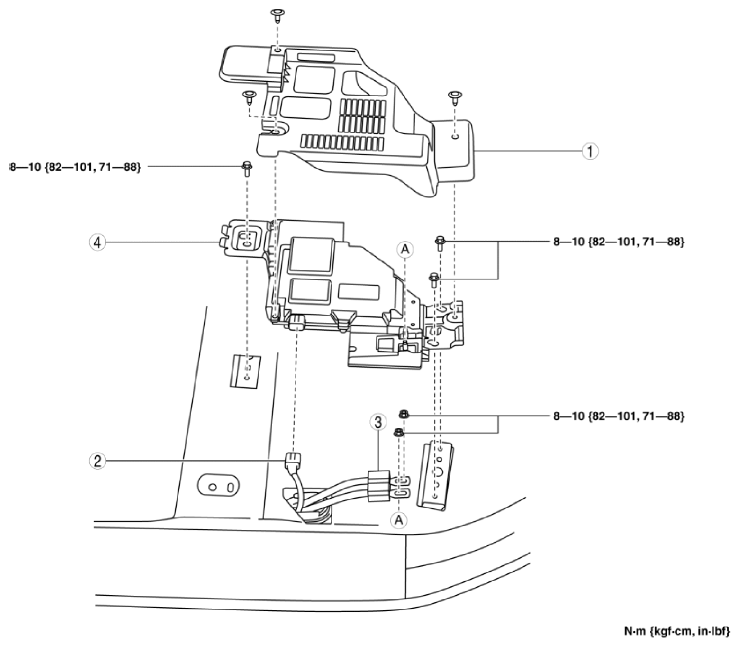

- Remove in the order indicated in the table.
- Install in the reverse order of removal.COMPONENT DESCRIPTION
1 Cover
(See COVER INSTALLATION NOTE .)2 DC-DC converter connector 3 Battery cable
(See BATTERY CABLE REMOVAL NOTE .)4 DC-DC converter
