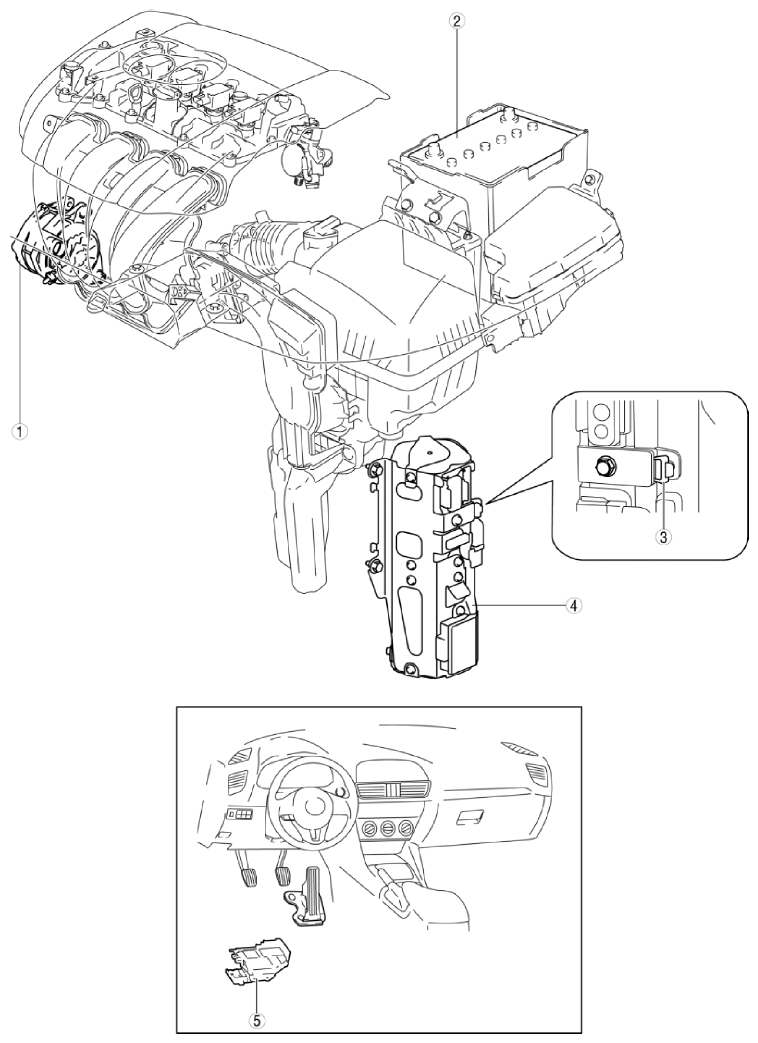

| 1 |
Generator
(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0. SKYACTIV-G 2.5 (WITH i-ELOOP)] .)
(See GENERATOR INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITH i-ELOOP)] .)
(See GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITH i-ELOOP)] .) |
| 2 |
Battery
(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
.)
(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
.)
(See BATTERY INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
.)
(See BATTERY RECHARGING [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
.) |
| 3 |
Service plug
(See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP] .) |
| 4 |
Capacitor (i-ELOOP)
(See CAPACITOR (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP] .)
(See CAPACITOR (i-ELOOP) INSPECTION [i-ELOOP] .)
(See CAPACITOR (i-ELOOP) COMPULSORY DISCHARGE [i-ELOOP] .) |
| 5 |
DC-DC converter
(See DC-DC CONVERTER REMOVAL/INSTALLATION [i-ELOOP] .)
(See DC-DC CONVERTER INSPECTION [i-ELOOP] .) |
