Rear Abs Wheel-Speed Sensor Removal/Installation: Notes

  1. For the 4SD, remove the following parts:
    1. Trunk end trim (Refer to TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. For the 5HB, remove the following parts:
    1. Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk end trim (Refer to TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Tire house trim (Refer to TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. Rear package tray (Refer to REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    6. Trunk side upper trim (Refer to TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Pull back the trunk side trim to a position which allows for the removal of the rear ABS wheel-speed sensor. (Refer to TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the rear ABS wheel-speed sensor connector.
    Fig 1: Disconnecting Rear ABS Wheel Speed Sensor Connector Tabs
    G10960815Courtesy of MAZDA MOTORS CORP.
  5. Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.
  8. After installation, verify that there is no twisting in the rear ABS wheel-speed sensor.

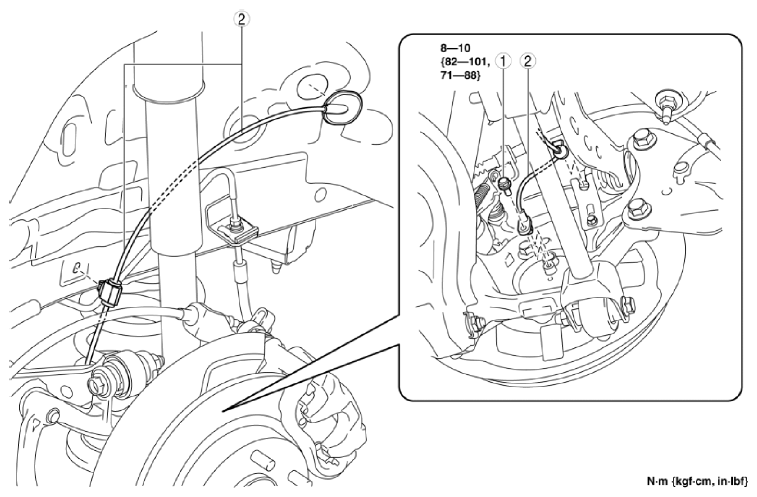

    Fig 2: Rear ABS Wheel Speed Sensor Bolt With Torque Specification
    G10960816Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Bolt
    2 Rear ABS wheel-speed sensor
    (See Rear ABS Wheel-speed Sensor Removal Note .)
