Connector Removal Note

CAUTION:

If sand or other particles get into the connector, it may be difficult to remove. To prevent damaging the connector, be careful not to use excessive force when disconnecting it.

Pull the lock lever down in the direction of the arrow while pressing the tab of the connector cover.

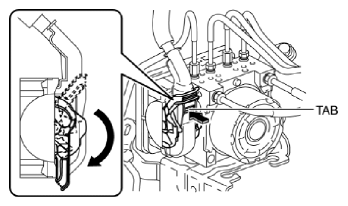

Fig 1: Pulling DSC HU/CM Lock Lever
Courtesy of MAZDA MOTORS CORP.
Pull the connector toward the vehicle rear and remove it.
