Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.

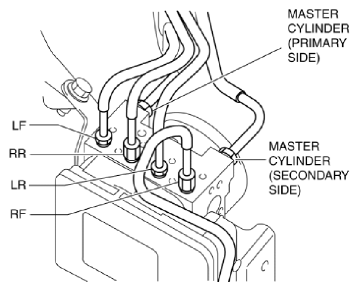

    Fig 1: Identifying Master Cylinder Side (Primary/Secondary), Brake Pipe And DSC HU/CM Alignment Marks
    G10960806Courtesy of MAZDA MOTORS CORP.
  2. Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
