Power Outer Mirror Removal/Installation: Notes

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the front door trim. (Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Remove the front door speaker. (Refer to FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
Disconnect the connector.

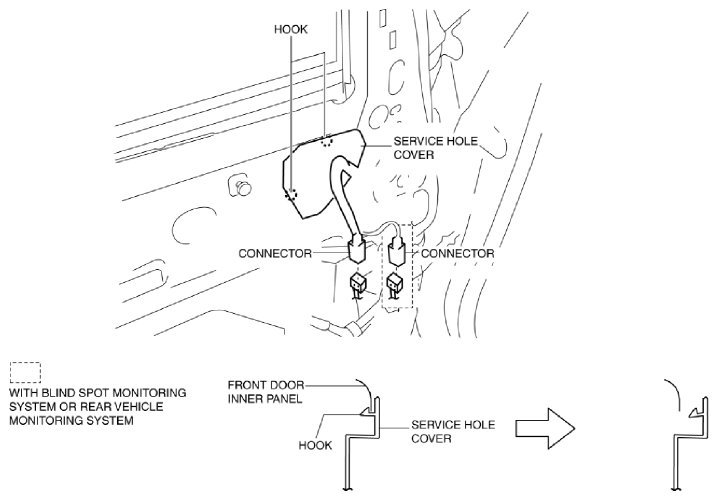

Fig 1: Disconnect Front Door Trim Connector
Courtesy of MAZDA MOTORS CORP.
Insert your hand through the front door speaker installation hole and remove hooks.
Remove the service hole cover.
Remove bolts.

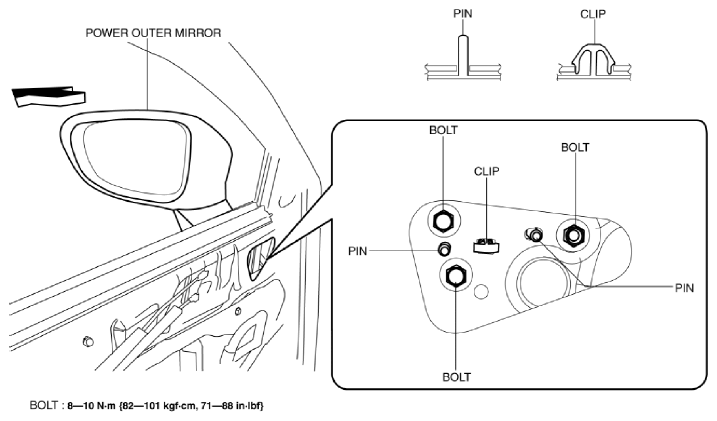

Fig 2: Removing Power Outer Mirror Pins And Clips
Courtesy of MAZDA MOTORS CORP.
Pull the power outer mirror in the direction of the arrow while remove clips, pins.
CAUTION:
- If clip of the power outer mirror is detached, the power outer mirror may fall off and be damaged. When detaching clip of the power outer mirror, hold the power outer mirror by hand during the servicing.
Remove the power outer mirror.
Install in the reverse order of removal. (Refer to POWER OUTER MIRROR INSTALLATION NOTE .)
