Front Door Trim Disassembly/Assembly: Driver-side

  1. Disassemble in the order shown in the figure.

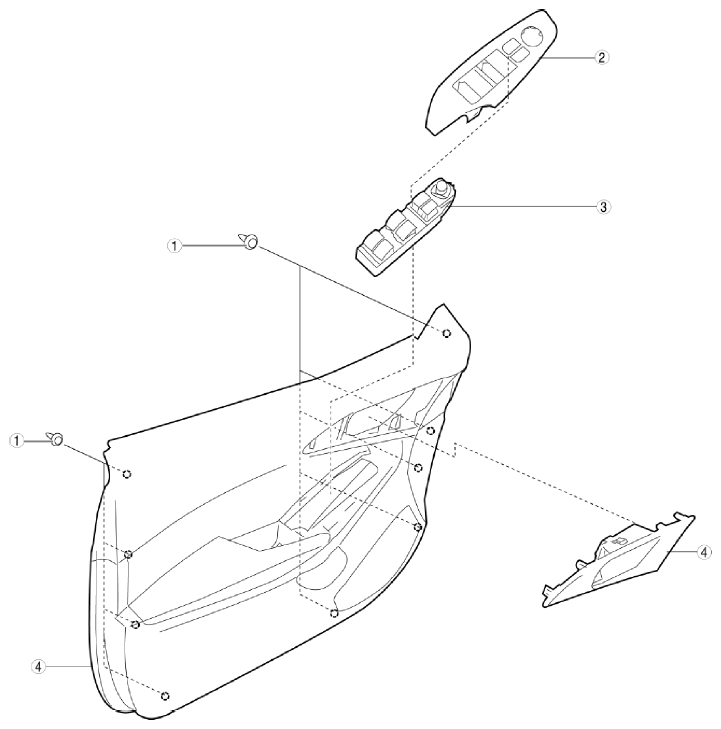

    Fig 1: Front Door Trim Related Components - Driver-Side
    G10963427Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fastener
    2 Switch panel cover
    (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
    3 Power window main switch
    4 Decoration panel
    5 Front door trim
  2. Assemble in the reverse order of disassembly.
