Cluster Switch Removal/Installation
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]
.)
- Remove the front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Remove the front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Partially peel back the seaming welt.
- Remove bolt.
Courtesy of MAZDA MOTORS CORP.

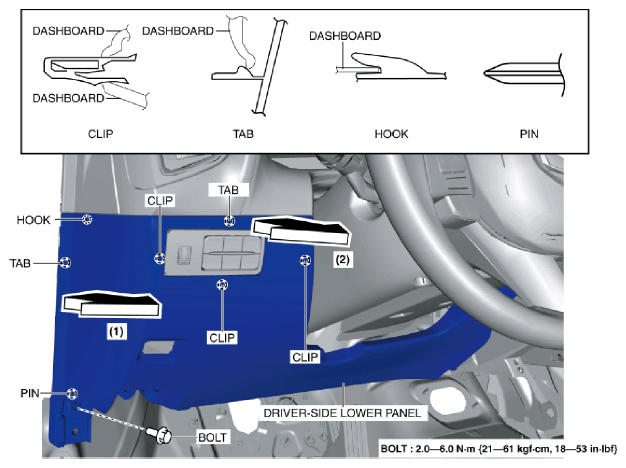

- Pull the driver-side lower panel in the direction of the arrow in the order of (1), (2) while detaching clips, tabs, hook and pin.

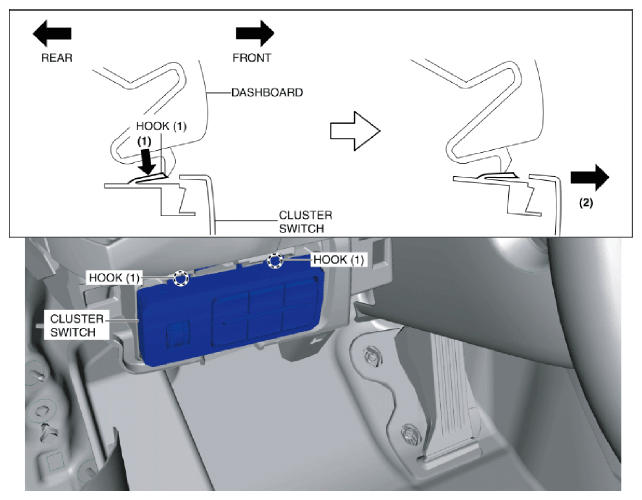

- While pressing the hooks in the direction of arrow (1) shown in the figure, move the cluster switch in the direction of arrow (2) and disengage the dashboard from the cluster switch hooks.
Courtesy of MAZDA MOTORS CORP.

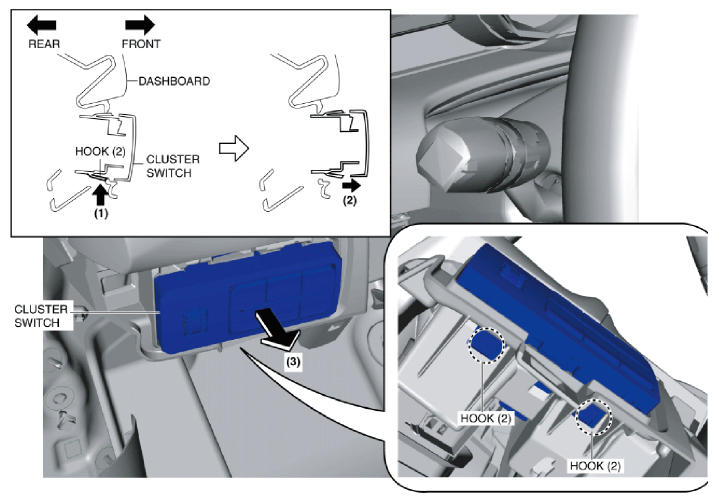

- While pressing the hooks in the direction of arrow (1) shown in the figure and with the cluster switch held so that the top part of the cluster switch does not become disengaged, move the cluster switch in the direction of arrow (2) and disengage the dashboard from the cluster switch hooks.
Courtesy of MAZDA MOTORS CORP.
- Remove the cluster switch in the direction of the arrow (7) shown in the figure.
CAUTION:

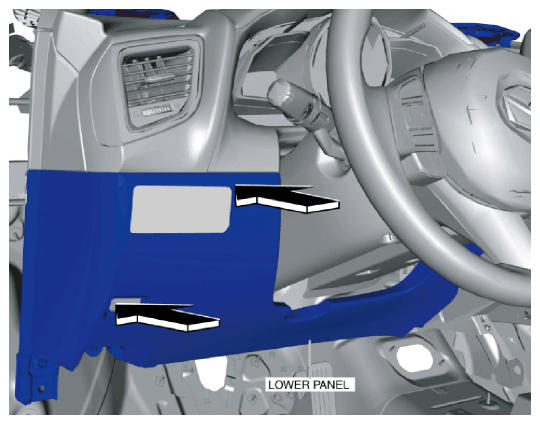

- If the driver's side lower panel is left uninstalled it could be damaged. If the cluster switch is not to be installed for the time being during the cluster switch inspection, temporarily install the driver's side lower panel in the direction of the arrows shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
