Trunk Lid Latch Switch Inspection

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the trunk lid recess. (Refer to TRUNK LID RECESS REMOVAL/INSTALLATION .)
Remove the trunk lid trim. (Refer to TRUNK LID TRIM REMOVAL/INSTALLATION .)
Remove the trunk lid latch and release actuator. (Refer to TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

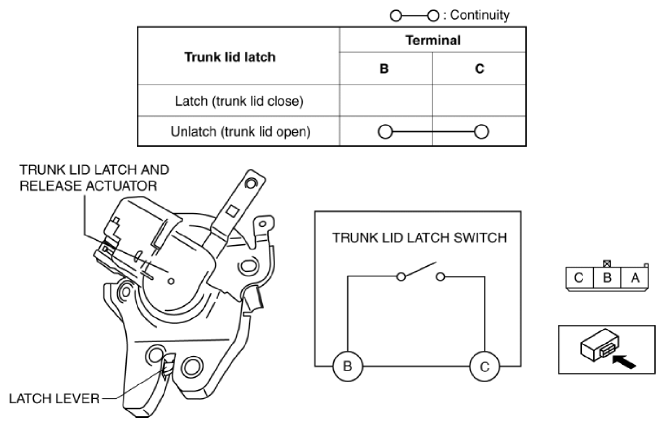

Fig 1: Trunk Lid Latch Switch Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the trunk lid latch and release actuator.
NOTE:
- When inspecting the latch condition of the trunk lid latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

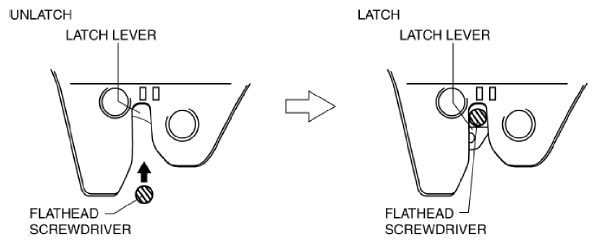

Fig 2: Pressing Latch Lever Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
