Resistance Inspection
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the upper column cover. (Refer to COLUMN COVER REMOVAL/INSTALLATION .)
- Remove the meter hood. (Refer to METER HOOD REMOVAL/INSTALLATION .)
- Remove the push button start. (Refer to PUSH BUTTON START REMOVAL/INSTALLATION .)

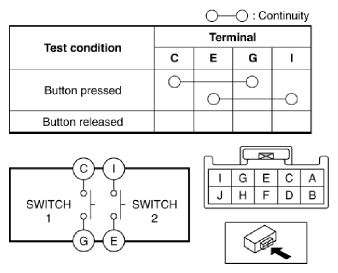

- Verify that the continuity between the push button start terminals is as indicated in the table.
- If not as indicated in the table, replace the push button start. (Refer to PUSH BUTTON START REMOVAL/INSTALLATION .)
