LED Illumination Inspection

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the upper column cover. (Refer to COLUMN COVER REMOVAL/INSTALLATION .)
Remove the meter hood. (Refer to METER HOOD REMOVAL/INSTALLATION .)
Remove the push button start. (Refer to PUSH BUTTON START REMOVAL/INSTALLATION .)
Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.

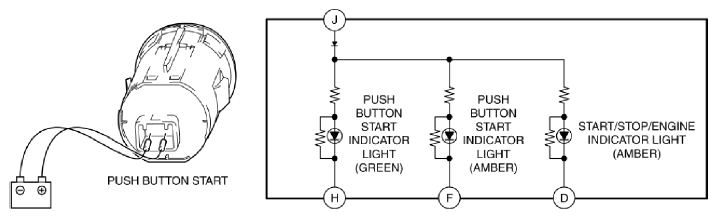

Fig 1: Push Button Start Circuit Diagram - LED Illumination
Courtesy of MAZDA MOTORS CORP.

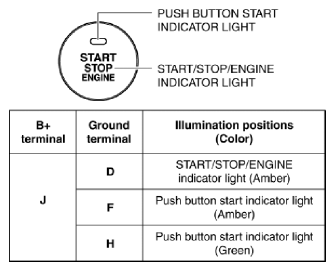

Fig 2: Identifying Push Button Start Indicator Light And Start/Stop/Engine Indicator Light
Courtesy of MAZDA MOTORS CORP.
- If the LED does not illuminate as indicated in the table, replace the push button start. (Refer to PUSH BUTTON START REMOVAL/INSTALLATION .)
