Keyless Receiver Removal/Installation: 5HB

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk end trim (Refer to TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Rear seat cushion (Refer to REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    5. Rear scuff plate (RH) (Refer to REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Tire house trim (RH) (Refer to TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    7. Rear package tray (Refer to REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    8. Trunk side upper trim (RH) (Refer to TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    9. C-pillar trim (RH) (Refer to C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

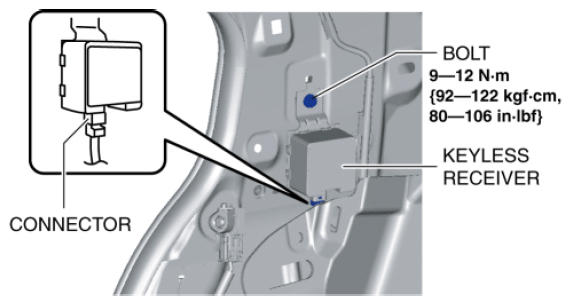

    Fig 1: Identifying Keyless Receiver, Connector And Bolt With Torque Specification (5HB)
    G10963080Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.
