Keyless Receiver Removal/Installation: 4SD

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear seat cushion (Refer to REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear scuff plate (RH) (Refer to REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Tire house trim (RH) (Refer to TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. C-pillar trim (RH) (Refer to C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

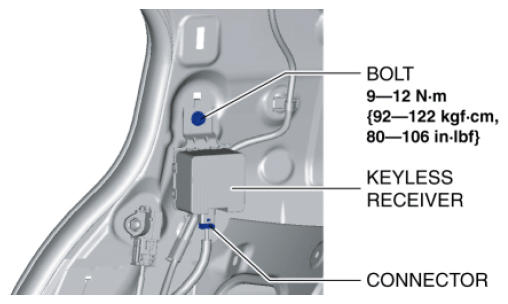

    Fig 1: Identifying Keyless Receiver, Connector And Bolt With Torque Specification (4SD)
    G10963079Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.
