Rear Inner Handle

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the rear door trim. (Refer to REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the door lock knob cable and the inner handle cable from the rear inner handle.

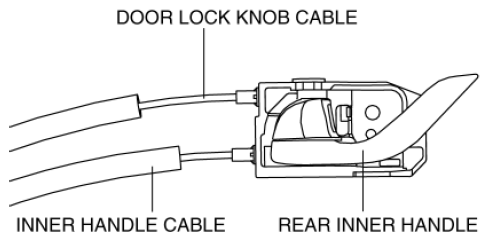

    Fig 1: Identifying Door Lock Knob Cable, Inner Handle Cable And Rear Inner Handle
    G10962957Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
