Front Inner Handle

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the front door trim. (Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the door lock knob cable and the inner handle cable from the front inner handle.

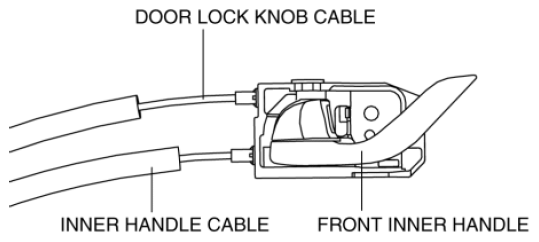

    Fig 1: Identifying Door Lock Knob Cable, Inner Handle Cable And Front Inner Handle
    G10962956Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
