Front Door Lock-Link Switch Inspection: RH

Perform the front door glass preparation. (Refer to FRONT DOOR GLASS REMOVAL/INSTALLATION .)
Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Front door trim (Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
2. Front inner handle (Refer to INNER HANDLE REMOVAL/INSTALLATION .)
3. Front door glass (Refer to FRONT DOOR GLASS REMOVAL/INSTALLATION .)
4. Front door module panel (Refer to FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
5. Front door latch and lock actuator (Refer to FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
When the door lock knob cable is pulled or pressed in, verify that the continuity is as indicated in the table.

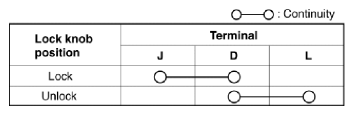

Fig 1: Front Door Lock-Link Switch Terminal Continuity Chart (RH)
Courtesy of MAZDA MOTORS CORP.

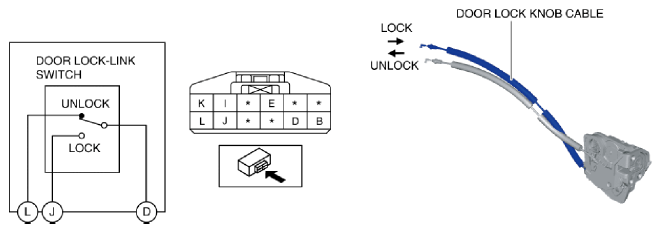

Fig 2: Front Door Lock-Link Switch Circuit Diagram (RH)
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the front door latch and lock actuator.
