Microphone Removal/Installation

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the front map light. (Refer to FRONT MAP LIGHT REMOVAL/INSTALLATION .)
  3. While pressing tabs A of the voice recognition microphone in the direction of the arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, pull the voice recognition microphone in the direction of the arrow (2) shown in the figure to detach tabs A of the voice recognition microphone from the front map light.

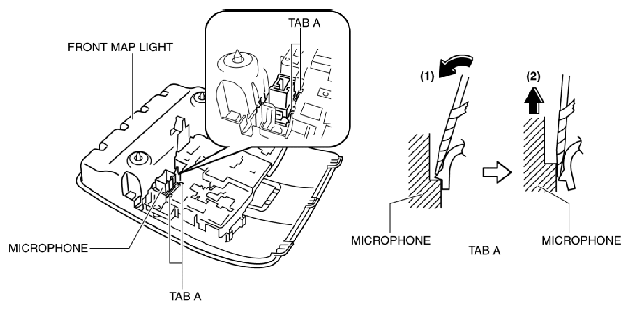

    Fig 1: Pressing Tabs A Of Voice Recognition Microphone
    G10963741Courtesy of ABLE BODY CORP.
  4. While pulling tab B of the voice recognition microphone in the direction of the arrow (1) shown in the figure, pull the voice recognition microphone in the direction of the arrow (2) shown in the figure to detach tab B of the voice recognition microphone from the front map light.

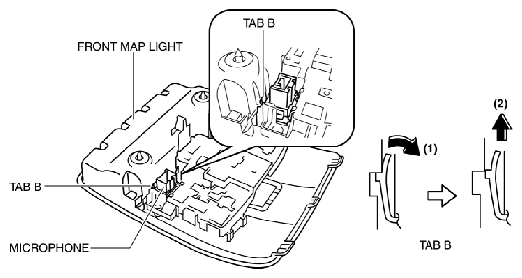

    Fig 2: Pulling Tab B Of Voice Recognition Microphone
    G10963742Courtesy of ABLE BODY CORP.
  5. Remove the microphone.
  6. Install in the reverse order of removal.
