Condenser Removal/Installation

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Rear seat cushion (LH) (Refer to REAR SEAT CUSHION REMOVAL/INSTALLATION .)
2. Rear scuff plate (LH) (Refer to REAR SCUFF PLATE REMOVAL/INSTALLATION .)
3. Rear seat back (Refer to REAR SEAT BACK REMOVAL/INSTALLATION .)
4. Tire house trim (LH) (Refer to TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
5. C-pillar trim (LH) (Refer to C-PILLAR TRIM REMOVAL/INSTALLATION .)
Disconnect the connectors.

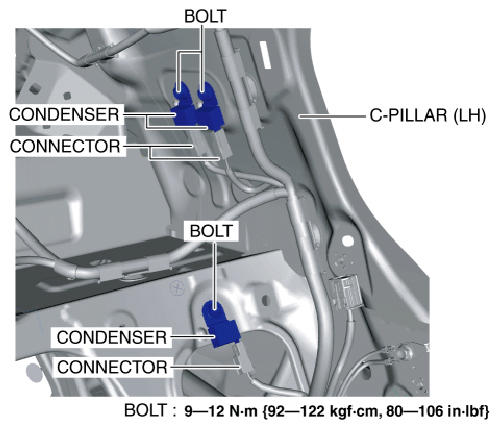

Fig 1: Identifying Condenser Connector And Bolts
Courtesy of ABLE BODY CORP.
Remove the bolts.
Remove the condensers.
Install in the reverse order of removal.
