Center Display Removal/Installation

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the glove compartment. (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the decoration panel. (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
  4. Remove the bolt.

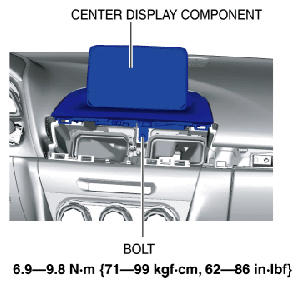

    Fig 1: Identifying Center Display Component And Bolt With Torque Specifications
    G10963604Courtesy of ABLE BODY CORP.
  5. Pull the center display component in the order of arrows (1) and (2) shown in the figure, and detach clips A and B from the dashboard.

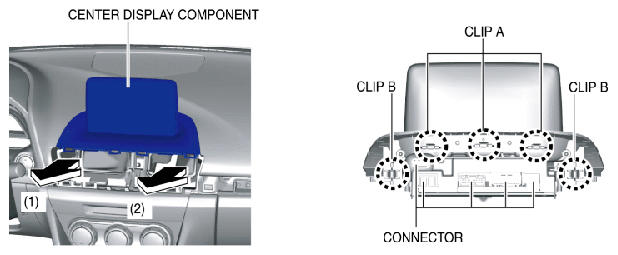

    Fig 2: Pulling Out Center Display Component
    G10963605Courtesy of ABLE BODY CORP.
  6. Disconnect the connectors.
  7. Remove the center display component.
  8. Remove the connectivity master unit (CMU). (Refer to CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
  9. Install in the reverse order of removal.
