Audio Unit Removal/Installation

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the glove compartment. (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the decoration panel. (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)

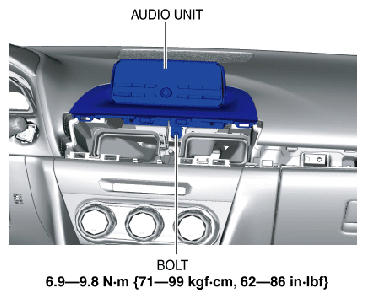

Remove the bolt.

Fig 1: Identifying Audio Unit And Bolt
Courtesy of ABLE BODY CORP.

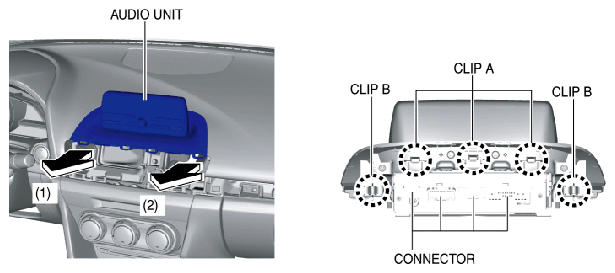

Pull the audio unit in the order of arrows (1) and (2) shown in the figure, and detach clips A and B from the dashboard.

Fig 2: Pulling Out Audio Unit
Courtesy of ABLE BODY CORP.
Disconnect the connectors.
Remove the audio unit.
Install in the reverse order of removal.
