Radar Sensor DISASSMBLY/Assembly (MRCC)

  1. Disassemble in the order indicated in the table.

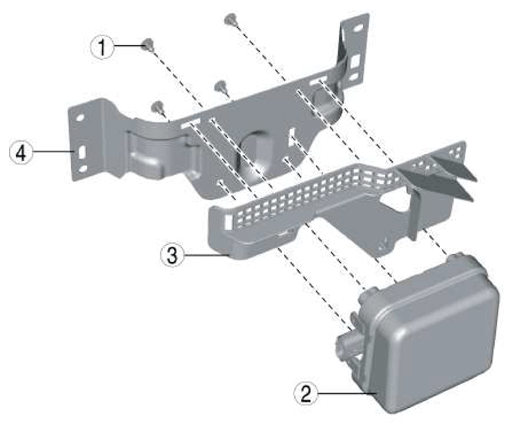

    Fig 1: Identifying Radar Sensor, Bracket, Cover And Screws
    G10960249Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Radar sensor
    3 Radar sensor cover
    4 Radar sensor bracket
  2. Assemble in the reverse order of disassembly.
