Clutch Unit Removal/Installation: Notes

1. Remove in the order indicated in the table in illustration.
2. Install in the reverse order of removal.

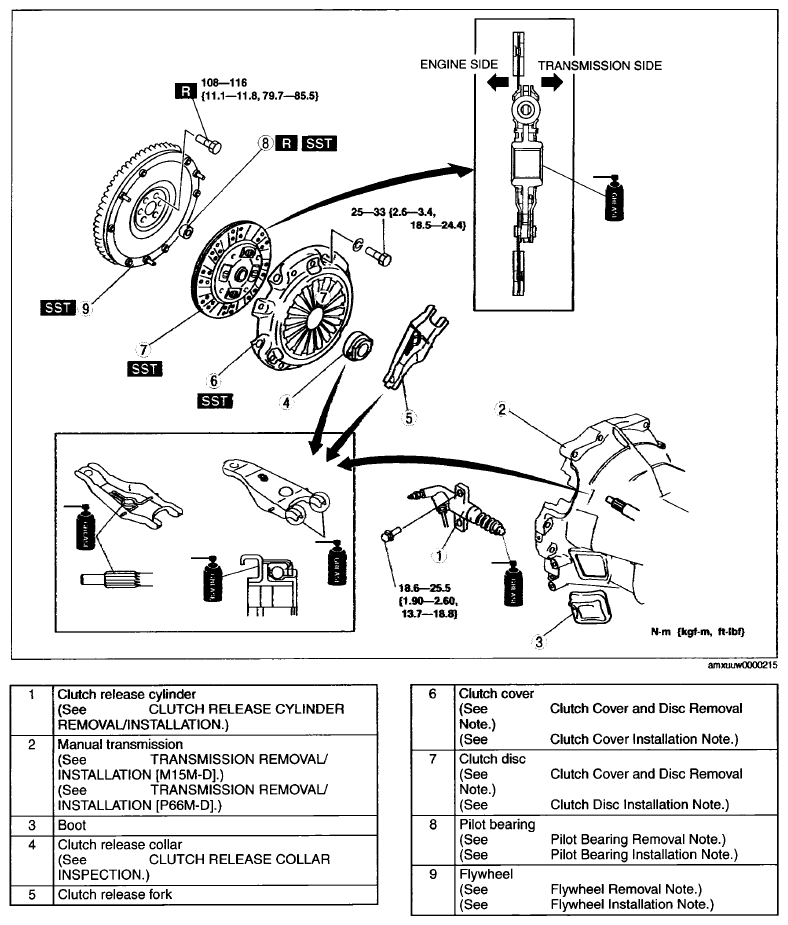

   Fig 1: Exploded View Of Clutch Unit With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
