Starter Interlock Switch Installation Note
CAUTION:
- If the rod is pushed in, it may not operate properly. Be careful not to push the rod in when installing the starter interlock switch.

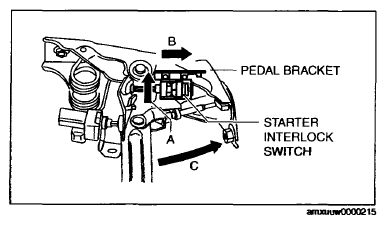

- Insert a new starter interlock switch into the pedal bracket hole in direction A.
- While pushing the starter interlock switch in direction A, slide it in direction B until it locks securely.
- Fully depress the clutch pedal in the direction of arrow C in illustration, and verify that a click sound from the starter interlock switch is heard.
