Vehicle Securing Position

• When transporting the vehicle by flat bed tow truck or trailer, secure the vehicle to the trailer using the holes and tiedown loop shown in the illustration.

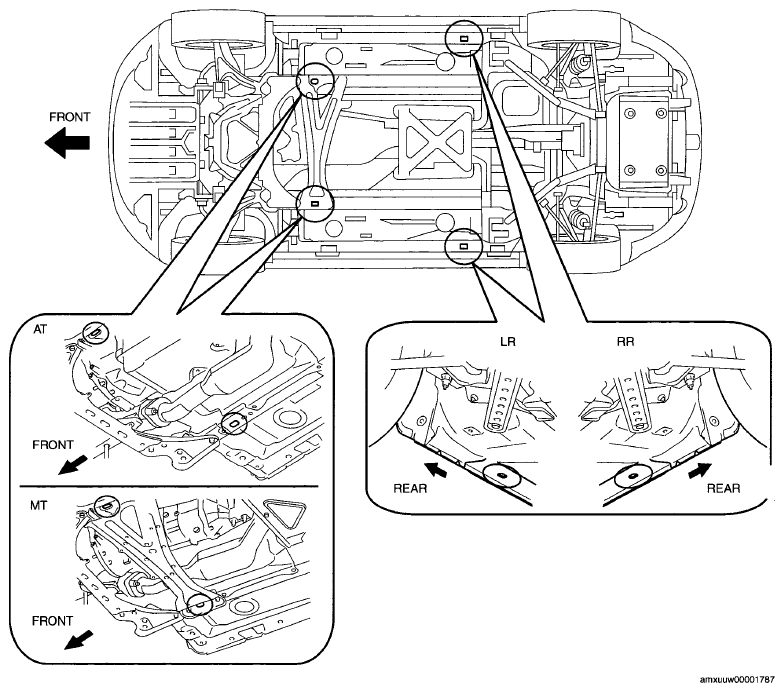

  Fig 1: Vehicle Securing Positions

  Courtesy of MAZDA MOTORS CORP.
  CAUTION:

  • To prevent damage to the vehicle, do not use the tiedown eyelet for towing the vehicle. Using another vehicle.
  NOTE:

  • The tie-down eyelet are used only when the vehicle is transported by ship.

FRONT

Fig 2: Caution For Vehicle Towing - Front

Courtesy of MAZDA MOTORS CORP.

REAR

Fig 3: Caution For Vehicle Towing - Rear

Courtesy of MAZDA MOTORS CORP.
