Vehicles with push button start system

The power supply position can be switched as follows by operating the push button start with the advanced key in the vehicle. (Engine is off)

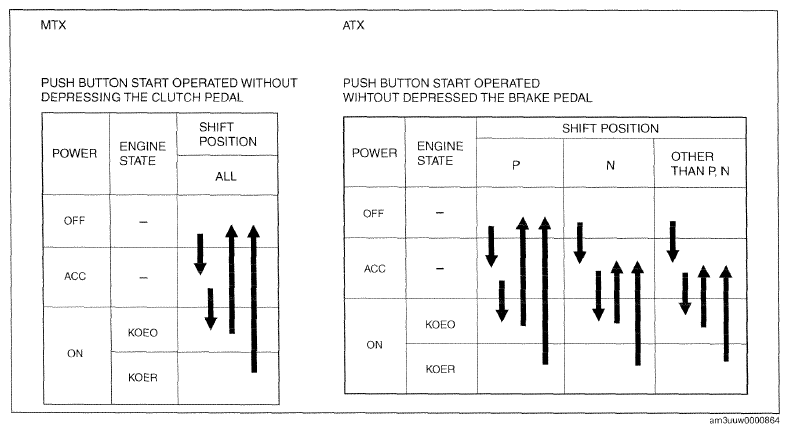

Fig 1: Power Supply Switching And Engine Starting Information Chart (Engine Off)
Courtesy of MAZDA MOTORS CORP.
The engine can be started as follows by operating the push button start with the engine start conditions met. (Engine is running)

Fig 2: Power Supply Switching And Engine Starting Information Chart (Engine Running)
Courtesy of MAZDA MOTORS CORP.
