Vehicle harness-side connector

The viewing direction of vehicle harness-side connectors is from the harness side.

*: Part names are shown only when there are multiple connector drawings.

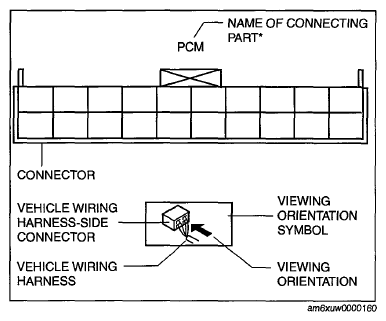

Fig 1: Locating Vehicle Harness-Side Connector
G06729137Courtesy of MAZDA MOTORS CORP.
