Rear Cover Disassembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the SSTs  to the engine stand.

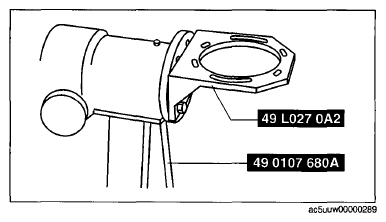

    Fig 1: Installing SST To Engine Stand
    G09075058Courtesy of MAZDA MOTORS CORP.
  2. Install the rear differential to the SSTs  .
  3. Remove the rear cover.
    Fig 2: Removing Rear Cover
    G09075059Courtesy of MAZDA MOTORS CORP.
