Locknut Disassembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the locknut using the SSTs  .

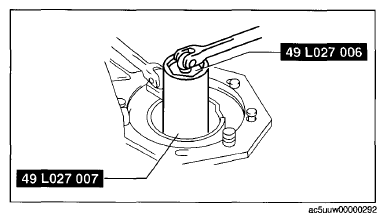

    Fig 1: Removing Differential Locknut Using Tool
    G09075061Courtesy of MAZDA MOTORS CORP.
