Ring Gear Assembly Note
WARNING: This page is about a different variant/trim than selected.

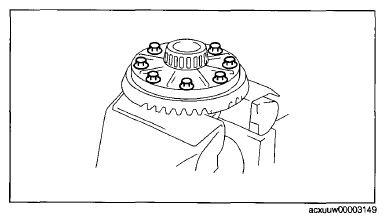

- Align the marks placed on the ring gear case at the time of disassembly and tighten the bolts in diagonal order.
Tightening torque 68.6-83.3 N.m {7.00-8.49 kgf.m, 50.6-61.4 ft.lbf}
Courtesy of MAZDA MOTORS CORP.
