Spacer, Inner Race Assembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Install a new spacer of the same size as the originally installed spacer.
    SPACER THICKNESS SPECIFICATIONS

    Identification mark Thickness (mm {in})
    08 3.08{0.1213}
    09 3.095{0.1219}
    11 3.11 {0.1224}
    12 3.125{0.1230}
    14 3.14{0.1236}
    15 3.155{0.1242}
    17 3.17{0.1248}
    18 3.185{0.1254}
    20 3.20{0.1260}
    21 3.215{0.1266}
    23 3.23{0.1272}
    24 3.245{0.1278}
    26 3.26{0.1283}
    27 3.275{0.1289}
    29 3.29{0.1295}
    30 3.305{0.1301}
    32 3.32{0.1307}
    33 3.335{0.1313}
    35 3.35{0.1319}
    36 3.365{0.1325}
    38 3.38{0.1331}
    39 3.395{0.1337}
    41 3.41 {0.1343}
    42 3.425{0.1348}
    44 3.44{0.1354}
    45 3.455{0.1360}
    47 3.47{0.1366}
    - -
  2. Press the bearing inner race (rear bearing) into the drive pinion using the SSTs  and a press.

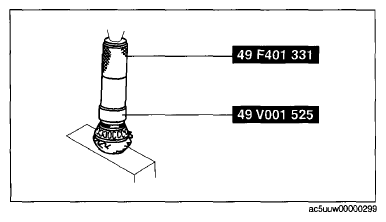

    Fig 1: Pressing Bearing Inner Race (Rear Bearing) Into Drive Pinion Using Tool
    G09075072Courtesy of MAZDA MOTORS CORP.
