Microphone Removal/Installation

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION ).
  3. While pressing tabs A of the voice recognition microphone in the direction of the arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, pull the voice recognition microphone in the direction of the arrow (2) shown in the figure to detach tabs A of the voice recognition microphone from the front map light.

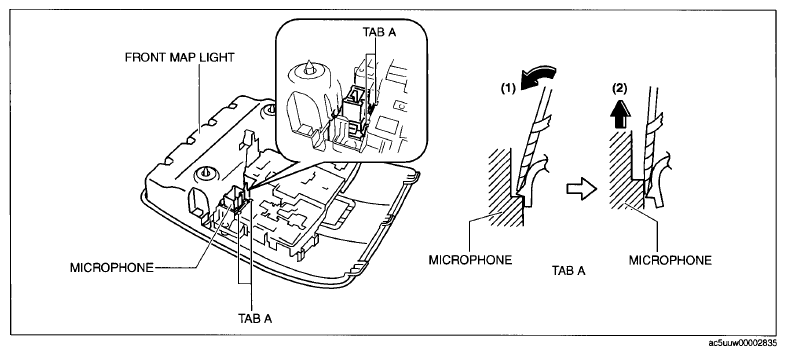

    Fig 1: Removing Voice Recognition Microphone (Tab A) Using Tape-Wrapped Flathead Screwdriver
    G09077743
  4. While pulling tab B of the voice recognition microphone in the direction of the arrow (1) shown in the figure, pull the voice recognition microphone in the direction of the arrow (2) shown in the figure to detach tab B of the voice recognition microphone from the front map light.

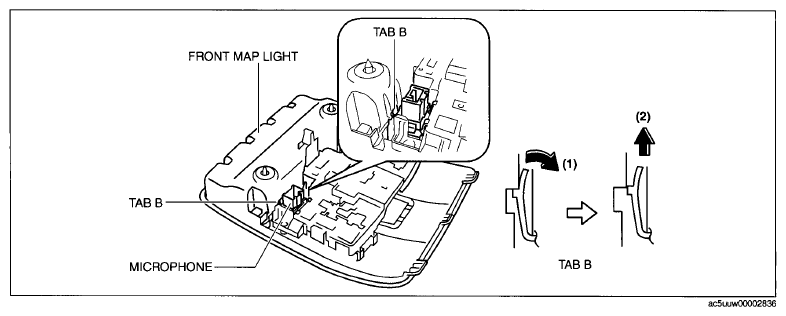

    Fig 2: Removing Voice Recognition Microphone (Tab B) Using Tape-Wrapped Flathead Screwdriver
    G09077744
  5. Remove the voice recognition microphone.
  6. Install in the reverse order of removal.
