AudioPilot®2 MICROPHONE REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

AudioPilot®2 is a registered trademark of Bose® Corporation.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the following parts:
1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
3. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION ).
4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION ).
5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] ).
6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION ).
7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
8. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
9. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION ).
10. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
11. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION ).
12. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION ).
13. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION ).
Disconnect the connector.
Remove the nut.
Remove the AudioPilot®2 microphone.
Install in the reverse order of removal.

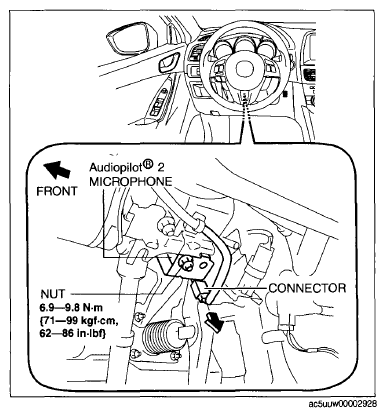

Fig 1: Removing Audio Pilot Microphone With Torque Specifications
