Rear Brake (Disc) Removal/Installation: Notes
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the adjusting nut. (See PARKING BRAKE LEVER ADJUSTMENT ).

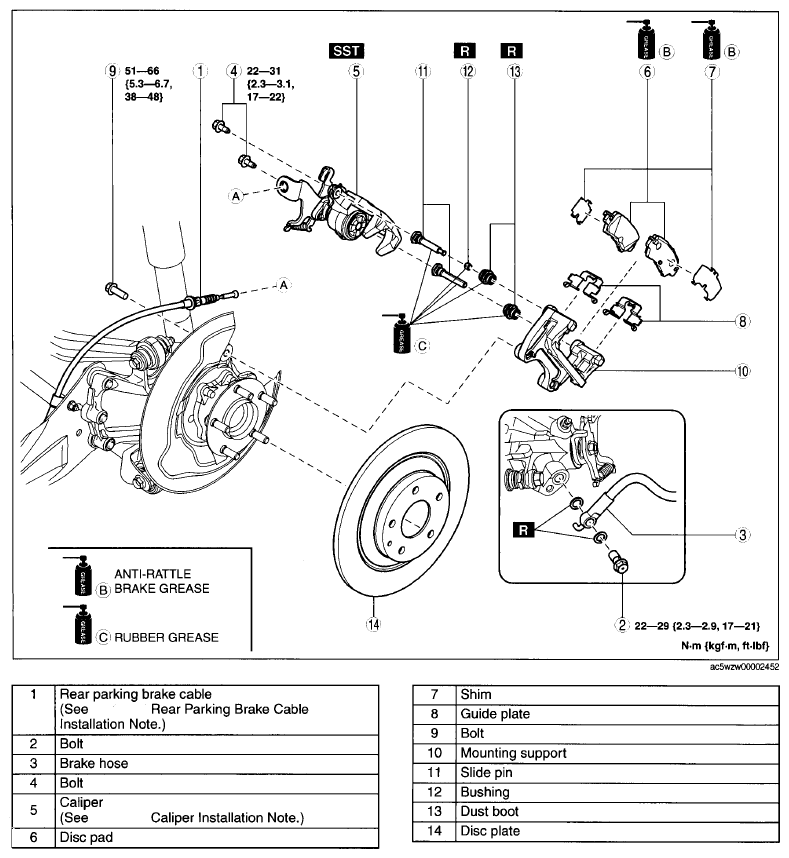

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING ).
- Pump the brake pedal a few times and inspect the following:
- The disc pad projection is securely installed to the piston groove
- Parking brake lever stroke
- Brake drag
