Caliper Installation Note
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the exposed area of the piston.

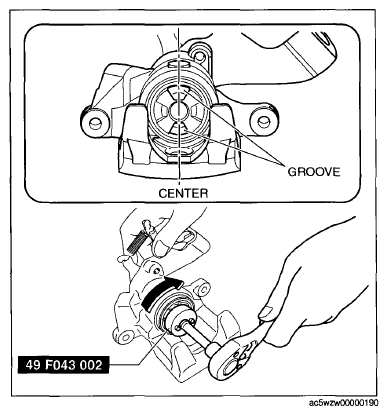

- Rotate the piston clockwise slowly using the SST and push the piston completely until the piston grooves are in the position shown in the figure.
- Install the caliper.
