Brake Fluid Inspection

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the brake fluid level in the brake fluid reserve tank is between the MAX and MIN marks.
- If the brake fluid level is below the MIN mark, add brake fluid.

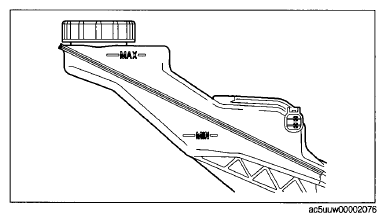

  Fig 1: Identifying Brake Fluid Level
