Oil Shower Pipe Installation Note
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

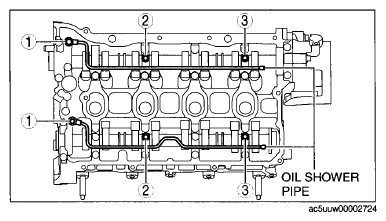

- Install the oil shower pipe in the order shown in the figure.
TIGHTENING TORQUE SPECIFICATION
| Installation position |
Tightening torque |
| 1 |
9-12 N.m {92-122 kgf.cm, 80-106 in.lbf} |
| 2,3 |
8.0-9.0 N.m {82-91 kgf.cm, 71-79 in.lbf} |
