No.3 Engine Mount Removal Note

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clips shown in the figure and set the ground cable aside.

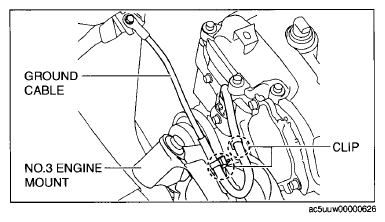

    Fig 1: Identifying No.3 Engine Mount, Ground Cable And Clips
    G09074160
  2. Install the SST  using part number 99794 1025  or an M10 x 1.25  , length 25 mm {0.98 in}  bolt as shown in the figure.
    CAUTION:
    • Slots have been adopted for the No.3 engine mount installation holes. If the No.3 engine mount is deviated from the original position when installing the No.3 engine mount, engine noise or vibration could increase. Before removing the No.3 engine mount, place alignment marks on the No.3 engine mount and body so that they can be assembled to the same positions as before removal.

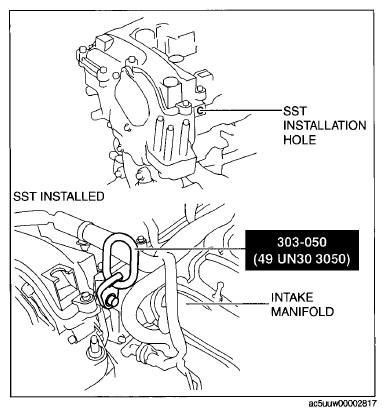

    Fig 2: Installing SST Into Intake Manifold Installation Hole
    G09074161
  3. Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.
    NOTE:
    • Paint so that the No.3 engine mount is framed on the body side and the outline of the nut is framed on the No.3 engine mount side.
  4. Install the SST  using the following procedures.
    CAUTION:
    • Refer to the SST instruction manual for the basic handing procedure.
    NOTE:
    • Install front feet No. 2 to the left and right front shafts of the SST  .

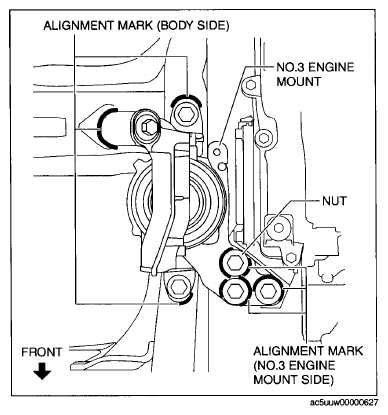

    Fig 3: Identifying Alignment Marks On No.3 Engine Mount And Nuts
    G09074162
    1. Protect the positions shown in the figure using tape.
      Fig 4: Securing Front Foot No. 2, Side Bar, Front And Rear Shaft Using Tool
      G09075341

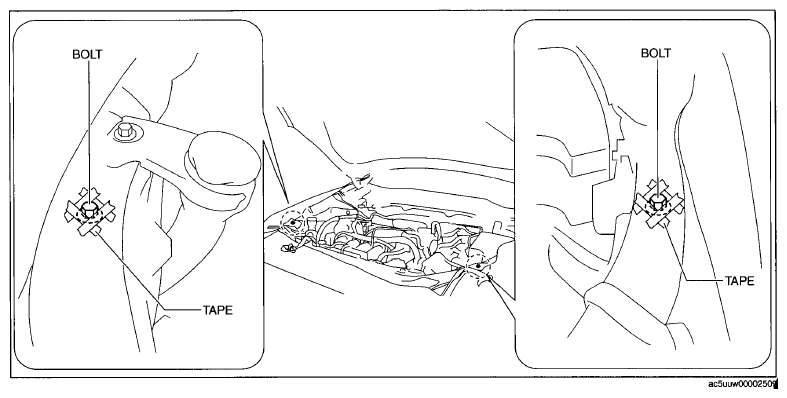

      Fig 5: Securing Bolt Using Tape
      G09074164
    2. As shown in the figure, set the rear shafts of the SST  to the left and right shock absorber nuts.

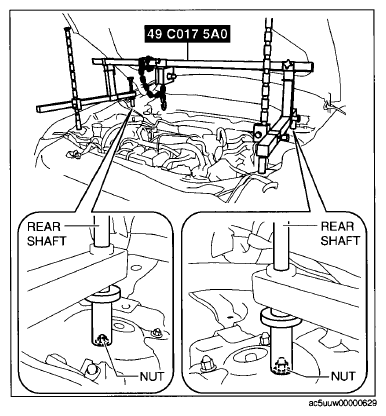

      Fig 6: Setting Rear Shafts Of SST To Left And Right Shock Absorber Nuts
      G09074165
    3. As shown in the figure, set the front shafts of the SST to the left and right bolts.

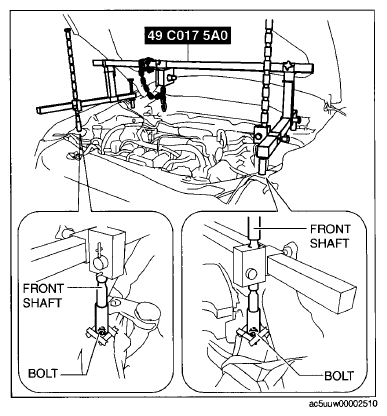

      Fig 7: Setting Front Shafts Of SST To Left And Right Bolts
      G09074166
    4. Adjust the height of the left and right side bars of the SST  so that they are leveled, then tighten each part.
    5. Apply tension to the chain to hold the engine.
  5. Remove the No.3 engine mount.

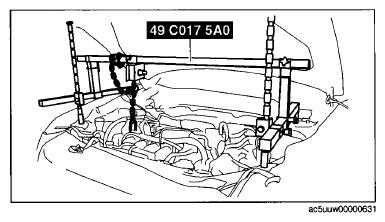

    Fig 8: Adjusting Height Of Left And Right Side Bars Of SST
    G09074167
