No.1 Engine Mount (2WD): Notes

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front under cover No.2. (See FRONT UNDER COVER NO.2 REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

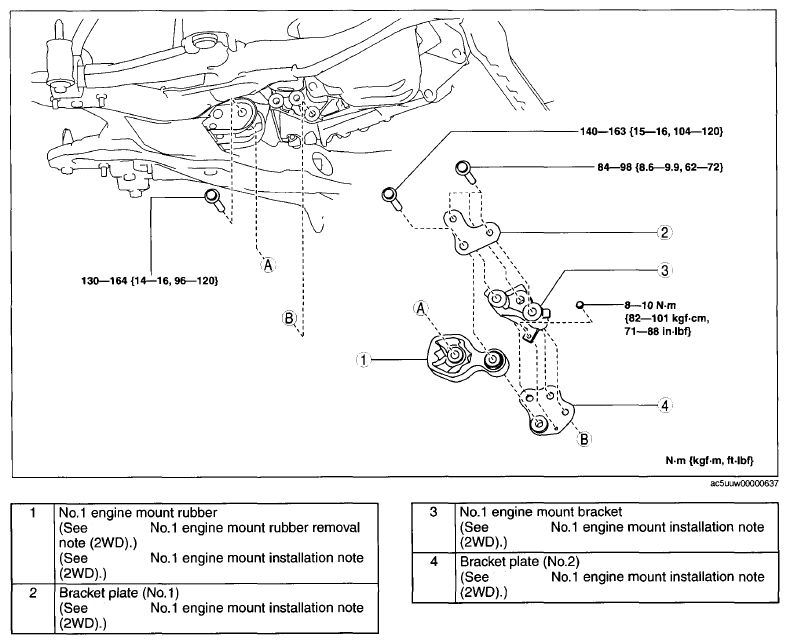

    Fig 1: No.1 Engine Mount Rubber, Bracket, Bracket Plates And Mounting Bolts With Torque Specifications
    G09074266
